AllTerrain MP400
163 kg plug-and-play pusher — 5,000 kg on castors, slopes to 15°.
Key specifications
- Capacity (castors)
- 5,000 kg
- Max push force
- 3,924 N
- Drive motor
- 2 kW AC
- Max slope
- 15°
Official MasterMover Distributor
Factory-trained Engineers
Nationwide Support
Key benefits
Why operations choose the AllTerrain MP400
High Capacity
Moves loads up to 5,000 kg.
No Operator Licence
Pedestrian-operated — no forklift licence required.
Compact & Manoeuvrable
Fits standard aisles, doorways and lifts where forklifts can't go.
Battery Powered
Quiet, zero-emission electric drive. Easy to operate.
About this model
AllTerrain MP400 — overview

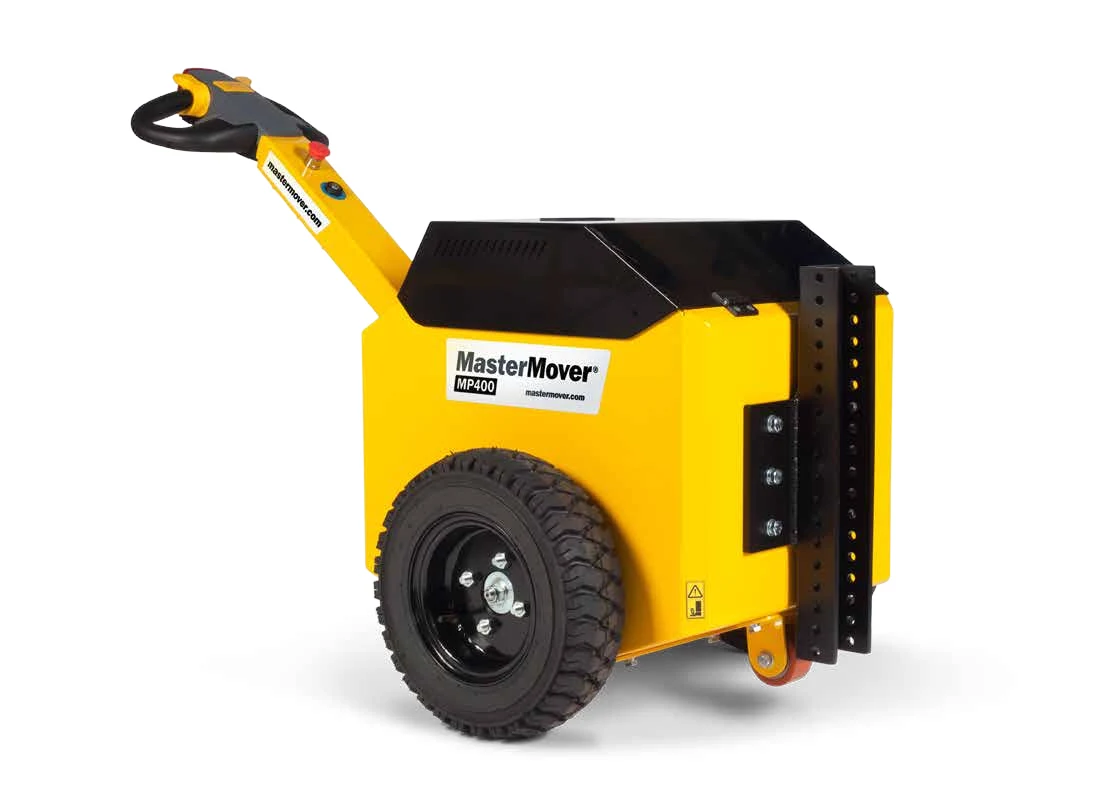

The MP400 is a lightweight plug-and-play machine pusher for linear movement of heavy wheeled loads. At just 163 kg it can be moved between lines by one person, yet a 2 kW AC drive delivers 3,924 N of push force to shift up to 5,000 kg on castors or 80,000 kg on rails, including gradients up to 15° — the steepest in the AllTerrain range. Ideal for pushing rail bogies, machine bases and dollies into position without a coupling.
Key features
- Plug-and-play push plate — no coupling required
- Steepest gradient capability in range (15°)
- 163 kg — one person can reposition it
- 5,000 kg on castors · 80,000 kg on rails
Applications
Where the AllTerrain MP400 fits
Outdoor yards & ramps
Construction sites
Rail-guided production
Semi-outdoor logistics
Technical data sheet
Download the AllTerrain MP400 brochure
Technical data
Full specifications
- Product code
- Z42-00100
- Maximum load (castors | rails)
- 5,000 kg | 80,000 kg
- Maximum push force
- 3,924 N
- Machine weight
- 163 kg
- Drive motor power
- 2 kW (AC controller)
- Speed (std | hare | tortoise)
- 2 | 3 | 1.2 KPH
- Maximum slope
- 15°
- Voltage
- 24 V
- IP rating
- IP44
