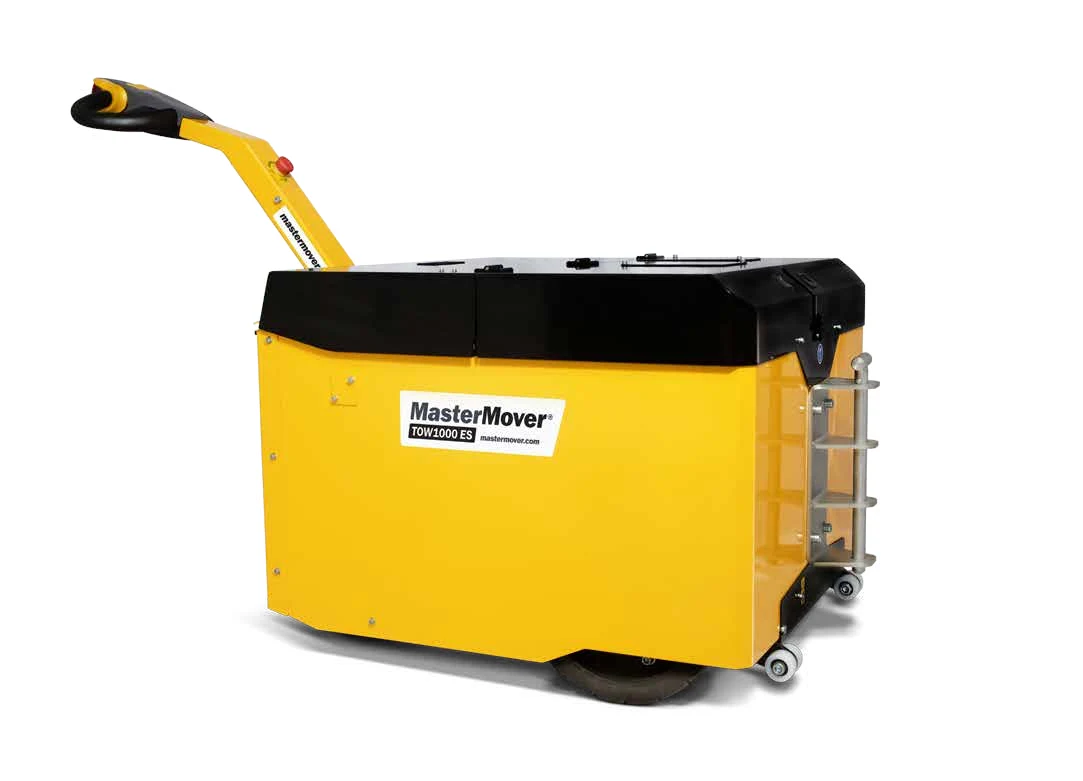

MasterTow TOW1000 ES
10,000 kg electric-steer tow tug for heavy trailer trains.
Key specifications
- Tow capacity (castors)
- 10,000 kg
- Max push / pull force
- 3,923 N / 5,884 N
- Drive motors
- 2 × 1.5 kW AC
- Max slope
- 8°
Official MasterMover Distributor
Factory-trained Engineers
Nationwide Support
Key benefits
Why operations choose the MasterTow TOW1000 ES
High Capacity
Moves loads up to 10,000 kg.
No Operator Licence
Pedestrian-operated — no forklift licence required.
Compact & Manoeuvrable
Fits standard aisles, doorways and lifts where forklifts can't go.
Battery Powered
Quiet, zero-emission electric drive. Easy to operate.
About this model
MasterTow TOW1000 ES — overview
The TOW1000 ES tows up to 10,000 kg on castors or 40,000 kg on rails, with twin 1.5 kW AC drive motors delivering 3,923 N push and 5,884 N pull force. Its 875 kg machine weight generates traction independently of the load, so performance stays consistent whether trailers are full or empty. Electric steering, regenerative braking and hare/tortoise speed control keep long trailer trains under precise control in busy plants.
Key features
- 10,000 kg on castors · 40,000 kg on rails
- Electric steering with twin 1.5 kW AC motors
- Traction independent of load weight
- Regenerative braking, IP44 rated
Applications
Where the MasterTow TOW1000 ES fits
Logistics & 3PL
Production milk-runs
Retail replenishment
Hospital linen & catering
Technical data sheet
Download the MasterTow TOW1000 ES brochure
Technical data
Full specifications
- Product code
- Z86-00100
- Maximum load (castors | rails)
- 10,000 kg | 40,000 kg
- Maximum push | pull force
- 3,923 N | 5,884 N
- Machine weight
- 875 kg
- Drive motor power
- 2 × 1.5 kW (AC controller)
- Speed (std | hare | tortoise)
- 2 | 3 | 1.2 KPH
- Maximum slope
- 8°
- Voltage
- 24 V
- IP rating
- IP44
