MasterTug · Heavy-Duty Range

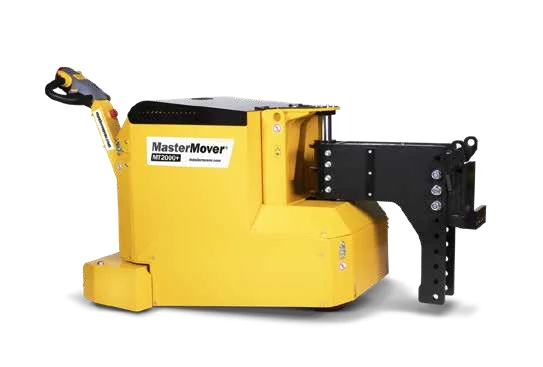

MasterTug MT2000+

The largest pedestrian MasterTug — 20,000 kg on castors, 80,000 kg on rails.

Key specifications

Capacity (castors): 20,000 kg
Max push/pull force: 13,729 N
Drive motor: 3.5 kW AC
Max slope: 8°

Request a Quote Download Brochure (01) 401 9919

Official MasterMover Distributor

Factory-trained Engineers

Nationwide Support

Key benefits

Why operations choose the MasterTug MT2000+

High Capacity

Moves loads up to 20,000 kg.

No Operator Licence

Pedestrian-operated — no forklift licence required.

Compact & Manoeuvrable

Fits standard aisles, doorways and lifts where forklifts can't go.

Battery Powered

Quiet, zero-emission electric drive. Easy to operate.

About this model

MasterTug MT2000+ — overview

The MT2000+ is the highest-capacity pedestrian-operated MasterTug, moving wheeled loads up to 20,000 kg on castors or 80,000 kg on rails from a compact footprint. A 3.5 kW AC drive delivers 13,729 N of push and pull force, while the weight-transfer principle and hydraulic coupling (2,875 kg lift force at the coupling) transfer load weight onto the drive wheel for consistent traction. Regenerative braking, an electromagnetic parking brake and hare/tortoise speed selection give complete control on gradients up to 8°.

Key features

20,000 kg on castors · 80,000 kg on rails
3.5 kW AC drive with regenerative braking
Hydraulic coupling — 2,875 kg lift force
Non-marking polyurethane wheels, IP44 rated

Applications

Where the MasterTug MT2000+ fits

Automotive assembly

Aerospace & defence

Heavy manufacturing

Pharmaceutical

Technical data sheet

Download the MasterTug MT2000+ brochure

Download Brochure (PDF)

Technical data

Full specifications

Product code: Z54-00103
Maximum load (castors | rails): 20,000 kg | 80,000 kg
Maximum push | pull force: 13,729 N | 13,729 N
Machine weight: 541 kg (711 kg with battery)
Drive motor power: 3.5 kW (AC controller)
Speed (hare | tortoise): 3 KPH | 1.2 KPH
Maximum slope: 8°
Voltage: 24 V
Max lift force at coupling: 2,875 kg
IP rating: IP44

Download the full MasterTug · Heavy-Duty Range brochure

Enquire about the MasterTug MT2000+

Speak to a MasterMover specialist

Tell us about the loads you need to move — weight, wheels, environment — and we'll recommend the right unit, with a free on-site demo, transparent pricing and finance options.
