Back to MasterMover
PowerSteered Range
PowerSteered PS1000+
10,000 kg power-steered tug with 6,865 N push/pull force.
Key specifications
- Capacity (castors)
- 10,000 kg
- Max push/pull force
- 6,865 N
- Drive motor
- 3.5 kW AC
- Max slope
- 8°
Official MasterMover Distributor
Factory-trained Engineers
Nationwide Support
Key benefits
Why operations choose the PowerSteered PS1000+
High Capacity
Moves loads up to 10,000 kg.
No Operator Licence
Pedestrian-operated — no forklift licence required.
Compact & Manoeuvrable
Fits standard aisles, doorways and lifts where forklifts can't go.
Battery Powered
Quiet, zero-emission electric drive. Easy to operate.
About this model
PowerSteered PS1000+ — overview

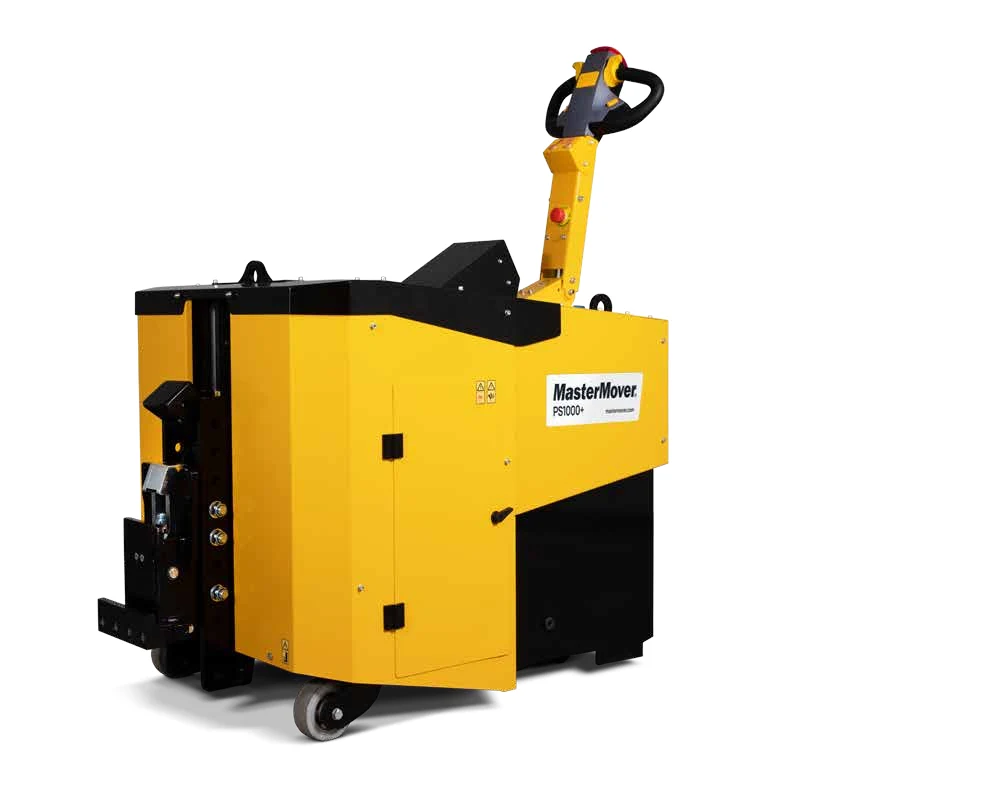

The PS1000+ moves loads up to 10,000 kg on castors or 40,000 kg on rails with intuitive power steering that removes operator effort entirely. A 3.5 kW AC drive produces 6,865 N of push and pull force, and the self-levelling hydraulic coupling (1,921 kg lift force) maintains a rigid connection to the load on slopes up to 8°. Available as pedestrian, remote control or fully autonomous AGV, and MultiLink-compatible for combined capacity.
Key features
- 10,000 kg on castors · 40,000 kg on rails
- Power-assisted steering, no licence required
- Self-levelling hydraulic coupling — 1,921 kg lift
- Pedestrian / remote / AGV, MultiLink-compatible
Applications
Where the PowerSteered PS1000+ fits
Aerospace & rail
Wind energy & turbines
Heavy industry
Large-format assembly
Technical data sheet
Download the PowerSteered PS1000+ brochure
Technical data
Full specifications
- Product code
- Z122-00101
- Maximum load (castors | rails)
- 10,000 kg | 40,000 kg
- Maximum push | pull force
- 6,865 N | 6,865 N
- Machine weight
- 780 kg (916 kg with battery)
- Drive motor power
- 3.5 kW (AC controller)
- Drive wheel
- 310 mm non-marking polyurethane
- Speed (hare | tortoise)
- 4 KPH | 1.2 KPH
- Maximum slope
- 8°
- Voltage
- 24 V
- Max lift force at coupling
- 1,921 kg
- IP rating
- IP44
