Back to MasterMover
PowerSteered Range

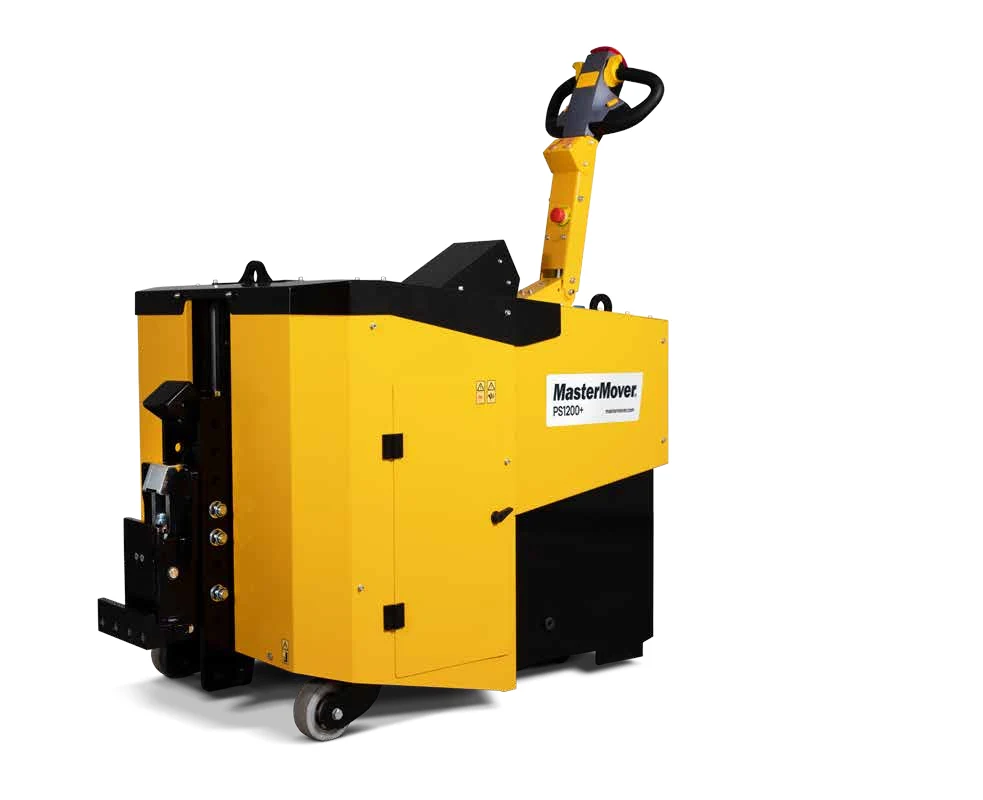

PowerSteered PS1200+
12,000 kg power-steered tug with 8,238 N push/pull force.
Key specifications
- Capacity (castors)
- 12,000 kg
- Max push/pull force
- 8,238 N
- Drive motor
- 3.5 kW AC
- Max slope
- 8°
Official MasterMover Distributor
Factory-trained Engineers
Nationwide Support
Key benefits
Why operations choose the PowerSteered PS1200+
High Capacity
Moves loads up to 12,000 kg.
No Operator Licence
Pedestrian-operated — no forklift licence required.
Compact & Manoeuvrable
Fits standard aisles, doorways and lifts where forklifts can't go.
Battery Powered
Quiet, zero-emission electric drive. Easy to operate.
About this model
PowerSteered PS1200+ — overview
The PS1200+ handles loads up to 12,000 kg on castors or 48,000 kg on rails, delivering 8,238 N of push and pull force from a 3.5 kW AC drive. Power steering keeps manoeuvring effortless regardless of load weight, while the self-levelling hydraulic coupling holds a rigid connection across uneven floors and slopes up to 8°. A compact footprint makes it well suited to congested production halls where forklift access is restricted.
Key features
- 12,000 kg on castors · 48,000 kg on rails
- 8,238 N push/pull from 3.5 kW AC drive
- Self-levelling hydraulic coupling — 1,921 kg lift
- Compact footprint for congested plants
Applications
Where the PowerSteered PS1200+ fits
Aerospace & rail
Wind energy & turbines
Heavy industry
Large-format assembly
Technical data sheet
Download the PowerSteered PS1200+ brochure
Technical data
Full specifications
- Product code
- Z122-00102
- Maximum load (castors | rails)
- 12,000 kg | 48,000 kg
- Maximum push | pull force
- 8,238 N | 8,238 N
- Machine weight
- 780 kg
- Drive motor power
- 3.5 kW (AC controller)
- Speed (hare | tortoise)
- 4 KPH | 1.2 KPH
- Maximum slope
- 8°
- Voltage
- 24 V
- Max lift force at coupling
- 1,921 kg
- IP rating
- IP44
Enquire about the PowerSteered PS1200+
Speak to a MasterMover specialist
Tell us about the loads you need to move — weight, wheels, environment — and we'll recommend the right unit, with a free on-site demo, transparent pricing and finance options.
- · Free on-site demo and manual-handling assessment
- · Flexible finance, contract hire and rental options
- · Bespoke coupling design for your trolleys and loads
- · Nationwide delivery, service and operator training
