CBD KD-Series · Walkie Pallet Truck

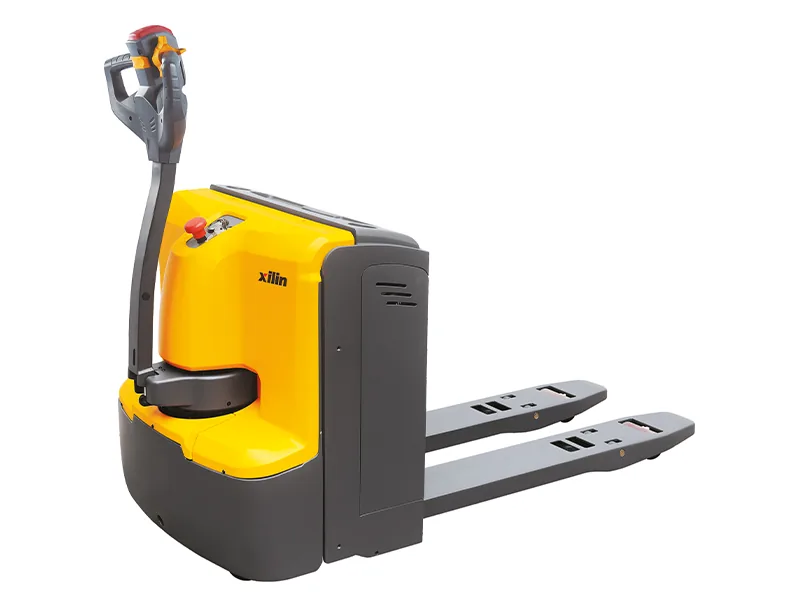

Xilin CBD20KD
2.0 t walkie pallet truck — heavy-duty AC drive with regenerative braking.
Key specifications
- Capacity
- 2,000 kg
- Power
- 24 V AC electric
- Travel speed (laden / unladen)
- 5.5 / 5.6 km/h
- Turning radius
- 1,470–1,620 mm
Authorised Xilin dealer
Factory-trained engineers
Nationwide delivery
About this model
Xilin CBD20KD — overview
The Xilin CBD20KD is a 2.0 tonne walkie pallet truck (CBD20KD-I / -II) with AC control system and regenerative braking. The -I variant adds side-way roll-out battery replacement; both feature low-speed switch on the handle, stepless speed control and a vertical drive wheel for a compact turning radius.
Key features
- AC control with regenerative braking
- Side-way roll-out battery (CBD20KD-I)
- Low-speed switch + stepless speed control
- Vertical drive wheel for compact turning
- Optional lithium battery (24 V / 150 or 230 Ah)
Technical data sheet
Download the Xilin CBD20KD brochure
Technical data
Full specifications
- Model
- CBD20KD-I / CBD20KD-II
- Load capacity
- 2,000 kg
- Drive motor
- 1.2 kW AC
- Battery
- 24 V / 200–210 Ah (lead-acid or Li-ion option)
- Travel speed (laden / unladen)
- 5.5 / 5.6 km/h
- Lift height
- 120 mm
Enquire about the Xilin CBD20KD
Speak to a Xilin-trained specialist
Tell us about your operation — capacity, environment, shift pattern — and we'll recommend the right unit, with transparent pricing, lead time and finance options.
- · Free site visit and operational assessment
- · Flexible finance, contract hire and lease options
- · Trade-in of your existing fleet considered
- · Nationwide delivery, factory-trained engineers
