CPD SA-Series · Premium 3-Wheel Electric Counterbalance
Xilin CPD20SA
Premium 3-wheel electric counterbalance — 1.6 / 1.8 / 2.0 t variants, tightest turning in the range.
Key specifications
- Capacity
- 1,600 / 1,800 / 2,000 kg
- Power
- 48 V AC electric
- Max lift height
- 3,000–6,200 mm
- Turning radius
- 1,552 / 1,652 mm
Authorised Xilin dealer
Factory-trained engineers
Nationwide delivery
About this model
Xilin CPD20SA — overview
The Xilin CPD20SA is a premium 3-wheel electric counterbalance available in 1.6 / 1.8 / 2.0 t variants (CPD20SA-16 / -18 / -20). German-imported drive axle, wet disc brake system and a sub-1,700 mm turning radius let it work in aisles diesel and 4-wheel trucks can't.
Key features
- German-imported drive axle
- Wet disc brake system
- Turning radius from 1,552 mm (CPD20SA-16/18)
- 2-stage wide-view / 2-stage FFL / 3-stage FFL mast options
- Minimum right-angle stacking aisle 3,220 mm

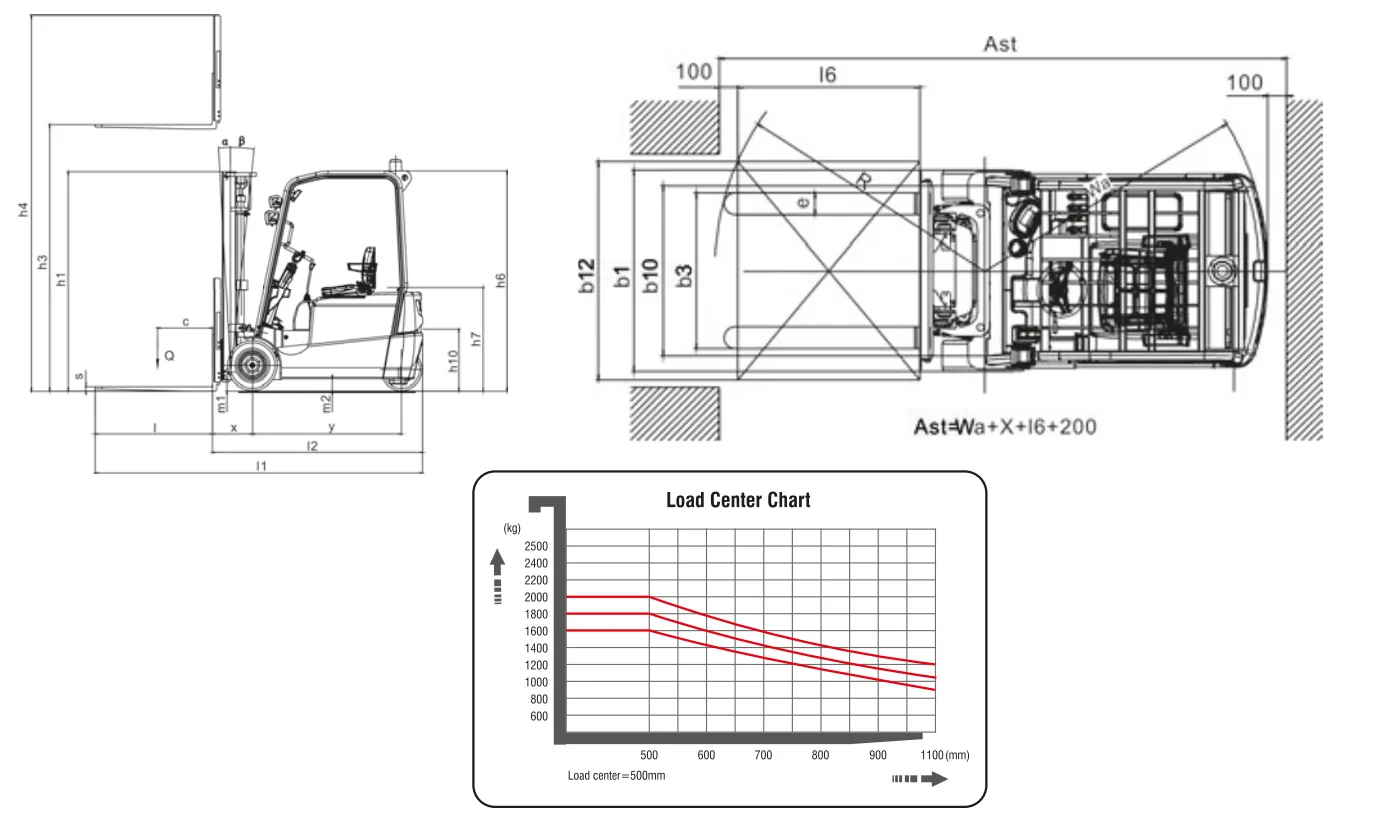

Technical data sheet
Download the Xilin CPD20SA brochure
Technical data
Full specifications
- Model
- CPD20SA-16 / -18 / -20
- Load capacity
- 1,600 / 1,800 / 2,000 kg
- Drive motors
- 2 × 4.75 kW AC
- Battery
- 48 V / 420–640 Ah
- Travel speed (laden / unladen)
- 13–14 / 13–14 km/h
- Turning radius
- 1,552 mm (-16/-18) / 1,652 mm (-20)
- Mast tilt (fwd / back)
- 3° / 6°
- Tyre type
- Solid rubber
