PowerSteered · Ultra Heavy-Duty

PowerSteered PS7000+

The heaviest electric tug available — 70,000 kg on castors.

Key specifications

Capacity (castors): 70,000 kg
Max push/pull force: 44,130 N
Drive motor: 9 kW AC (80 V)
IP rating: IP64

Request a Quote Download Brochure (01) 401 9919

Official MasterMover Distributor

Factory-trained Engineers

Nationwide Support

Key benefits

Why operations choose the PowerSteered PS7000+

High Capacity

Moves loads up to 70,000 kg.

No Operator Licence

Pedestrian-operated — no forklift licence required.

Compact & Manoeuvrable

Fits standard aisles, doorways and lifts where forklifts can't go.

Battery Powered

Quiet, zero-emission electric drive. Easy to operate.

About this model

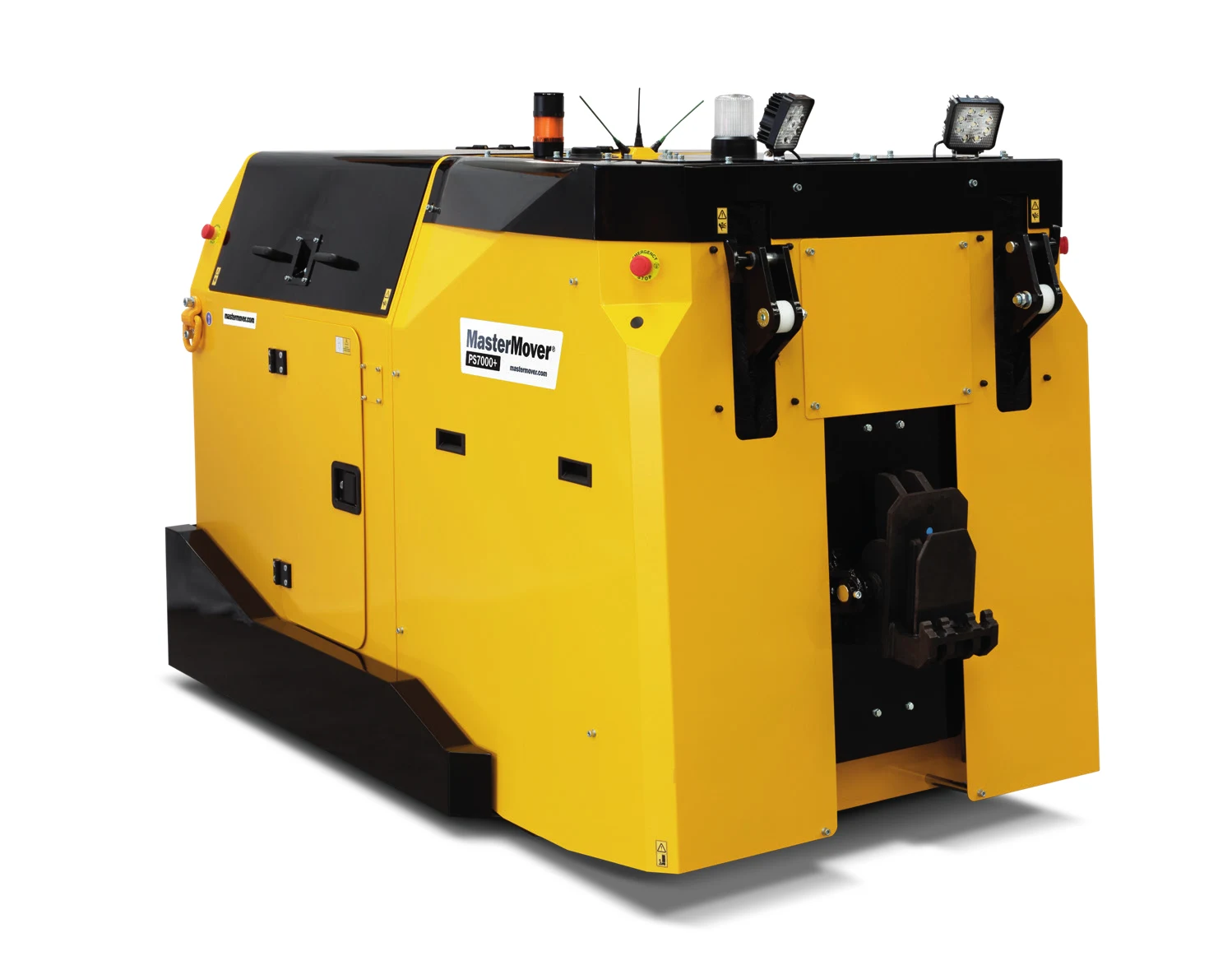

PowerSteered PS7000+ — overview

The PS7000+ is MasterMover's ultra heavy-duty electric tug, moving loads up to 70,000 kg on castors or 280,000 kg on rails under the control of a single operator. Full wireless remote operation lets the operator step away from the load and take the ideal viewing point, maximising safety and visibility. An 80 V system with a 9 kW AC drive produces over 44,000 N of push and pull force, while a heavy-duty three-point hydraulic coupling with self-levelling hydraulics delivers 5,000 kg of lift force to keep the load secure — even on slopes. Interchangeable maintenance-free AGM batteries support 24/7 operation, and MultiLink allows several tugs to work together under one operator, with AGV conversion available. The IP64-rated 2,600 kg chassis suits shipbuilding, rail, aerospace, energy and heavy-plant manufacturing where tractors or cranes were previously the only option.

Key features

70,000 kg on castors · 280,000 kg on rails
Full wireless remote control — operator steps away from the load
80 V system with 9 kW AC drive — 44,130 N push force
Heavy-duty hydraulic coupling — 5,000 kg lift force, self-levelling
MultiLink and AGV ready for future scalability
Interchangeable maintenance-free batteries for 24/7 operation
IP64-rated chassis for harsh environments

Applications

Where the PowerSteered PS7000+ fits

Aerospace & rail

Wind energy & turbines

Heavy industry

Large-format assembly

Technical data sheet

Download the PowerSteered PS7000+ brochure

Download Brochure (PDF)

Technical data

Full specifications

Product code: Z134-00100
Maximum load (castors | rails): 70,000 kg | 280,000 kg
Maximum push | pull force: 44,130 N | 44,145 N
Machine weight: 2,600 kg
Battery weight (standard): 730 kg
Combined machine & battery weight: 3,330 kg
Dimensions (L × W × H): 2,392 mm × 1,334 mm × 1,626 mm
Drive type: Electric
Braking: Regenerative
Parking brake: Electromagnetic
Drive wheel: 710 mm non-marking polyurethane
Castor wheel type: Non-marking polyurethane
Point loading: 0.76 kg/mm² (7.5 N/mm²)
Drive motor power: 9 kW (AC controller)
Speed (hare | tortoise): 3 KPH | 1.2 KPH
Maximum slope: 8°
Voltage: 80 V
Noise level: Motor ≤80 dBA | Beacon ≤85 dBA | Horn ≤112 dBA
Metalwork finish: Powder coat paint & zinc plated
IP rating: IP64
Max lift force at coupling: 5,000 kg
AGM battery: 190 Ah (Z134-00300)
Maximum distance per charge: 5 km
Charge time (external charger): 8 hrs
External charger: 240 V · 50–60 Hz · 20 A · single phase · IP20
Standard safety: Key switch, emergency stop, display screen, two-speed selector, automatic parking brake, warning horn, automatic and self-levelling hydraulics, integrated lifting and tie-down points, floating castor guard, remote control, flashing light and motion bleeper, status light, headlights
Couplings: CombiCoupling 3-point or SmartCoupling 3-point (male | female), optional
Options: Additional AGM battery, additional wireless e-stop, battery charging station, battery protection system

Download the full PowerSteered · Ultra Heavy-Duty brochure

Enquire about the PowerSteered PS7000+

Speak to a MasterMover specialist

Tell us about the loads you need to move — weight, wheels, environment — and we'll recommend the right unit, with a free on-site demo, transparent pricing and finance options.
