PowerSteered · Low-Height Range

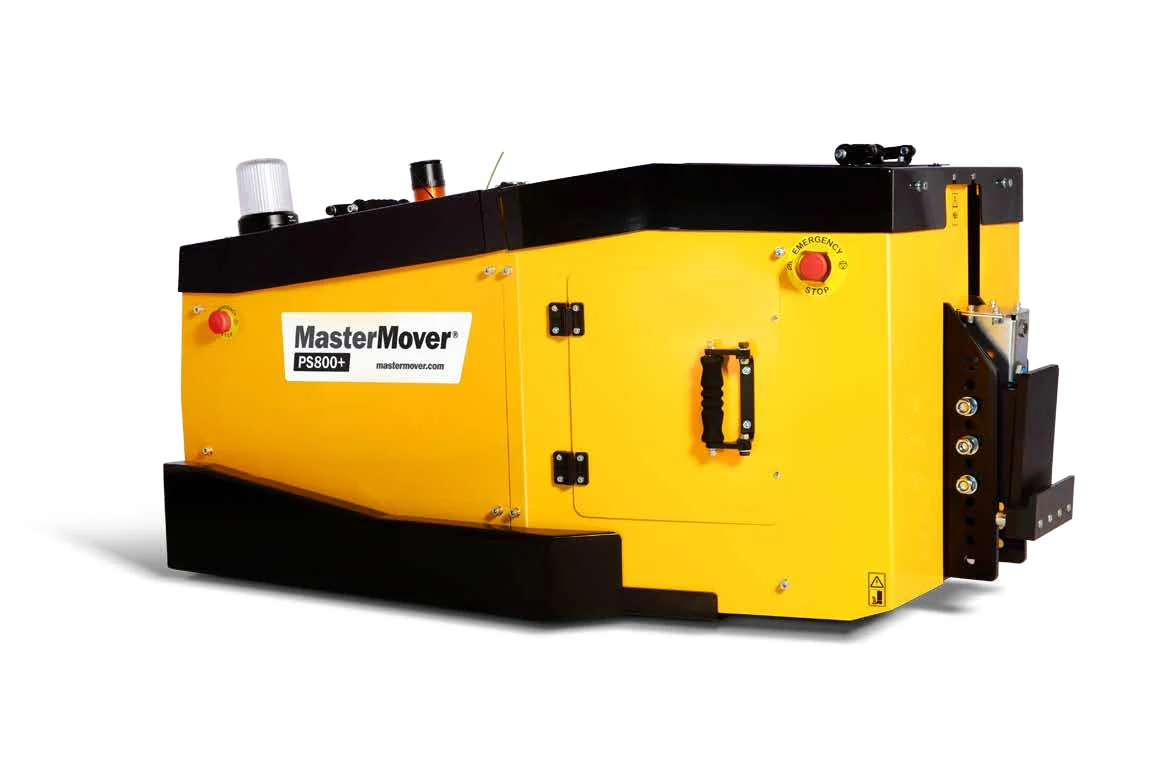

PowerSteered PS800+ LH
Low-height PowerSteered tug — 8,000 kg under low-clearance loads.
Key specifications
- Capacity (castors)
- 8,000 kg
- Max push/pull force
- 5,493 N
- Drive motor
- 2.5 kW AC
- Max slope
- 8°
Official MasterMover Distributor
Factory-trained Engineers
Nationwide Support
Key benefits
Why operations choose the PowerSteered PS800+ LH
High Capacity
Moves loads up to 8,000 kg.
No Operator Licence
Pedestrian-operated — no forklift licence required.
Compact & Manoeuvrable
Fits standard aisles, doorways and lifts where forklifts can't go.
Battery Powered
Quiet, zero-emission electric drive. Easy to operate.
About this model
PowerSteered PS800+ LH — overview
The PS800+ LH is a reduced-height version of the PS800+, engineered to couple to loads with restricted ground clearance such as low-profile trailers, dollies and machine bases. A 2.5 kW AC drive delivers 5,493 N of push and pull force for loads up to 8,000 kg (32,000 kg on rails), with a hydraulic coupling providing 1,300 kg of lift force. Power-assisted steering means a single operator controls the load with fingertip effort — no licence required.
Key features
- Low-height chassis for restricted-clearance loads
- Power-assisted steering — fingertip control
- Hydraulic coupling with 1,300 kg lift force
- Pedestrian, remote control and AGV options
Applications
Where the PowerSteered PS800+ LH fits
Aerospace & rail
Wind energy & turbines
Heavy industry
Large-format assembly
Technical data sheet
Download the PowerSteered PS800+ LH brochure
Technical data
Full specifications
- Product code
- Z80-00100
- Maximum load (castors | rails)
- 8,000 kg | 32,000 kg
- Maximum push | pull force
- 5,493 N | 5,493 N
- Machine weight
- 551 kg
- Drive motor power
- 2.5 kW (AC controller)
- Speed (hare | tortoise)
- 4 KPH | 2 KPH
- Maximum slope
- 8°
- Voltage
- 24 V
- Max lift force at coupling
- 1,300 kg
- IP rating
- IP44
