CQD Deluxe Series · Seated Electric Reach Truck
Xilin CQD20-D
2.0 t deluxe seated reach truck — lifts up to 14,500 mm with EPS and 180/360° steering.
Key specifications
- Capacity
- 2,000 kg @ 600 mm load centre
- Power
- 48 V / 500 Ah (up to 930 Ah)
- Max lift height
- Up to 14,500 mm
- Turning radius (min)
- 1,783 mm
Authorised Xilin dealer
Factory-trained engineers
Nationwide delivery
About this model
Xilin CQD20-D — overview

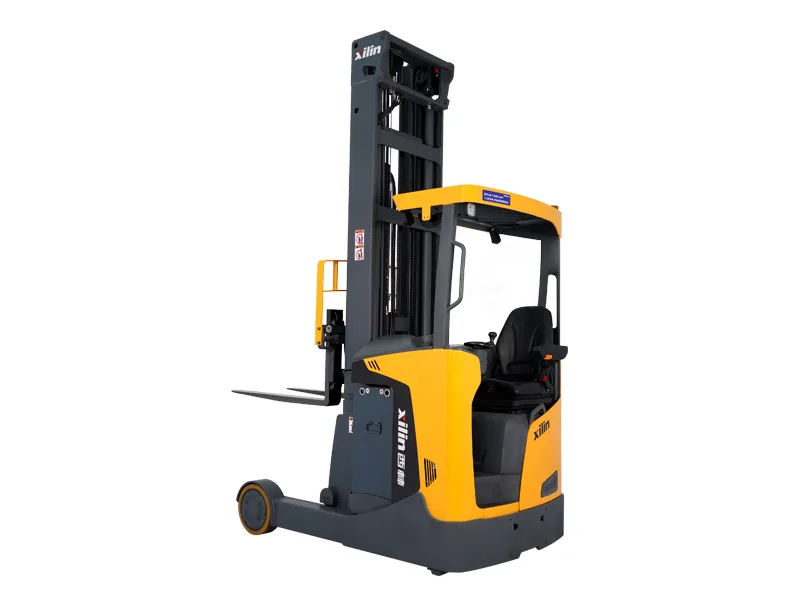

The Xilin CQD20-D is the Deluxe Series seated electric reach truck — 2,000 kg at 600 mm load centre, lift heights up to 14,500 mm. Full AC CAN control, EPS electric power steering, 180/360° steering mode selection, optional fork-side camera and touch-screen colour display.
Key features
- Lift heights to 14,500 mm
- Full AC CAN control system
- EPS electric power steering
- 180° / 360° steering mode selection
- Optional fork-side camera + touch-screen colour display
- Sideway battery removal with mast for easy maintenance
Technical data sheet
Download the Xilin CQD20-D brochure
Technical data
Full specifications
- Model
- CQD20-D
- Load capacity
- 2,000 kg (derated at height — see load chart)
- Load centre
- 600 mm
- Drive motor
- 6.5 kW AC
- Lift motor
- 8.2 kW AC (12 kW optional)
- Battery
- 48 V / 500 Ah std (600 / 800 / 930 Ah option)
- Travel speed (laden / unladen)
- 13 / 14 km/h
- Aisle width (1000×1200 crossways)
- 2,849 mm
